The Role of Elements in 3xxx Series Aluminum Alloys

3xxx series aluminum alloys are mainly aluminum–manganese (Al–Mn) based materials, with Mn as the principal alloying element. In alloys such as 3003, manganese is typically added in the range of 1.0–1.6%. Manganese improves the mechanical strength and corrosion resistance of the alloy by forming stable intermetallic compounds like Al₆Mn, which exhibit excellent thermal stability. However, excessive Mn content can reduce castability, while insufficient Mn lowers the mechanical performance.

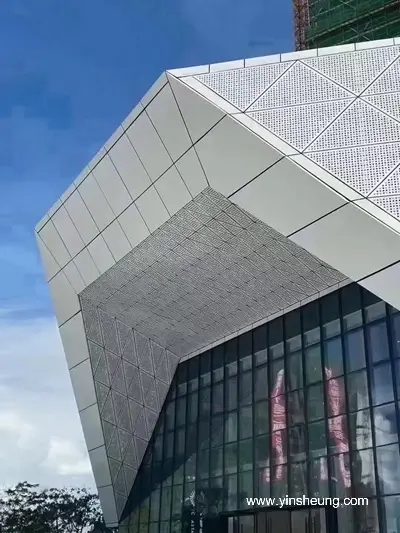

Aluminum curtain walls panels

Iron (Fe) and silicon (Si) are common impurity elements in 3003 aluminum alloys. The Al₆Mn phase can dissolve Fe to form Al₆(Mn,Fe) compounds, which helps to mitigate the harmful effects of Fe impurities and promotes fine recrystallized grains after annealing. To prevent coarse, plate-like segregation of Al₆(Mn,Fe) compounds during solidification, the combined content of Mn and Fe should be kept below 1.8%, with Fe controlled between 0.4–0.7%. Silicon often combines with Al and Mn to form AlMnSi or complex quaternary compounds such as α-Al(Mn,Fe)Si and β-AlMnFeSi. The α-phase is preferred for processing due to its lower hardness and better deformability.

A small addition of copper (Cu)—usually less than 0.2%—can significantly enhance the tensile strength of 3003 alloy. However, excessive Cu lowers the melting point and impairs weldability.

By adjusting the alloying composition, other grades within the 3xxx series can be obtained.

3-series aluminum alloy roller

For example:

• 3004 alloy contains 0.8–1.3% Mg, providing additional solid solution strengthening.

• 3005 alloy includes 0.2–0.6% Mg and 0.1% Cr, offering improved corrosion resistance and strength.

Minor additions of magnesium (Mg) in Al–Mn alloys can also produce fine-grain strengthening and potential age-hardening effects when combined with sufficient Si and Cu.

Nickel (Ni), though only slightly soluble in aluminum (up to 0.05%), can form Al₉FeNi compounds that enhance high-temperature strength and thermal stability, while refining Fe-rich phases into more desirable granular forms.

Applications of 3-series aluminum alloy

In recent years, rare earth (RE) elements have been used to further optimize the microstructure of 3xxx alloys. Due to their active chemical nature and incomplete 4f electron shells, rare earth additions—even in very small amounts—can significantly modify the alloy structure and performance. When added below 0.1%, RE elements mostly dissolve in the matrix or segregate at boundaries, refining the grains and strengthening the alloy. At higher concentrations (above 0.3%), they form thermally stable compounds distributed along grain boundaries, thereby improving high-temperature performance and creep resistance.
